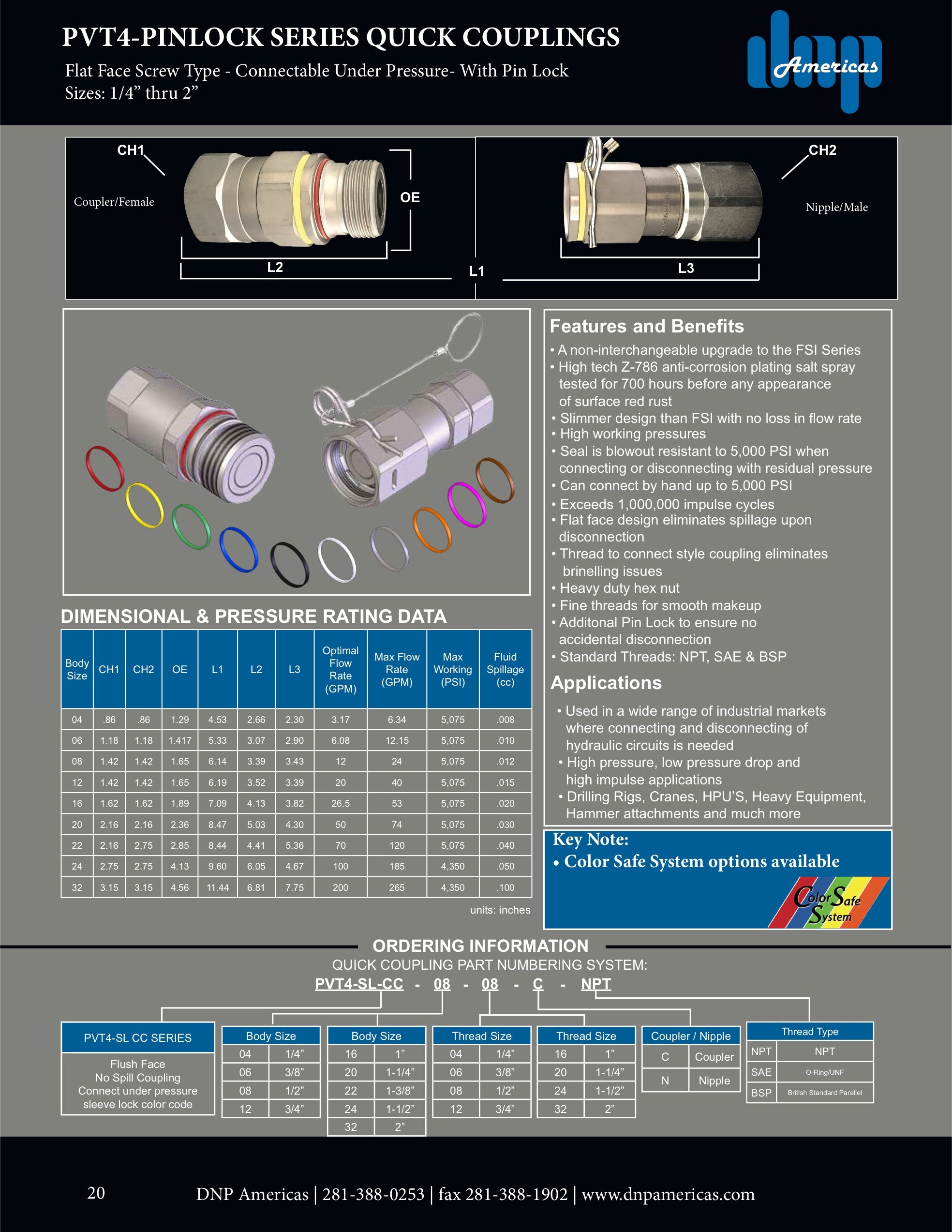

Flat Face Screw Couplings/Pin Lock

Interchange: exclusive Dnp profile

Occlusion: flat face

Locking: screw with pin lock

Material: steel

Finishing: Zn-Fe (Cr III) and Zn-Ni

Threads: BSP-NPT-SAE-METRICS

Standard seals: NBR and PU

Working temperature: -13°F+212°F

Optional seals: FKM, EPDM or more

Working pressure: 4,350-5,800 PSI

Connection under residual pressure: allowed (both male

                                                       or female side)

Sizes Offered: 1/4”-2”

Accessories offered: Aluminum cap and plug
