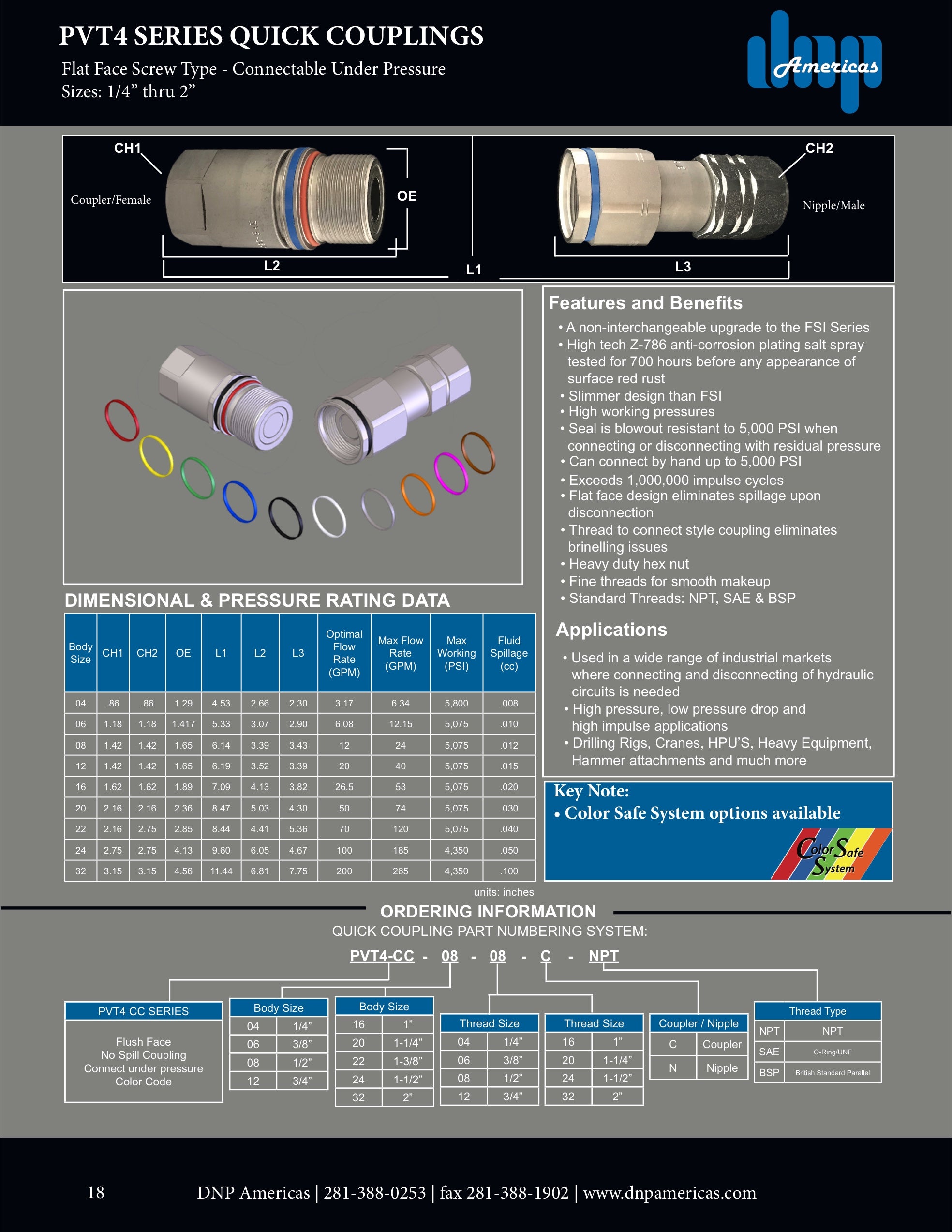

• Flat Face Screw Couplings/Steel

  Interchange: exclusive Dnp profile

  Occlusion: flat face

  Locking: screw

  Material: steel

  Finishing: Zn-Fe (Cr III) and Zn-Ni

  Threads: BSP-NPT-SAE-METRIC

  Standard seals: NBR and PU

  Working temperature: -13°F+212°F

  Optional seals: FKM, EPDM or more

  Working pressure: 4,350-5,800 PSI

  Connection under residual pressure: allowed (both male

  or female side)

  Sizes Offered: 1/4” - 2”

  Accessories offered: PVT4-ADP/ADC and PDC/PDP

THESE ARE SOLD AS INDIVIDUALS NOT SETS

C= COUPLER/FEMALE

N= NIPPLE/MALE
