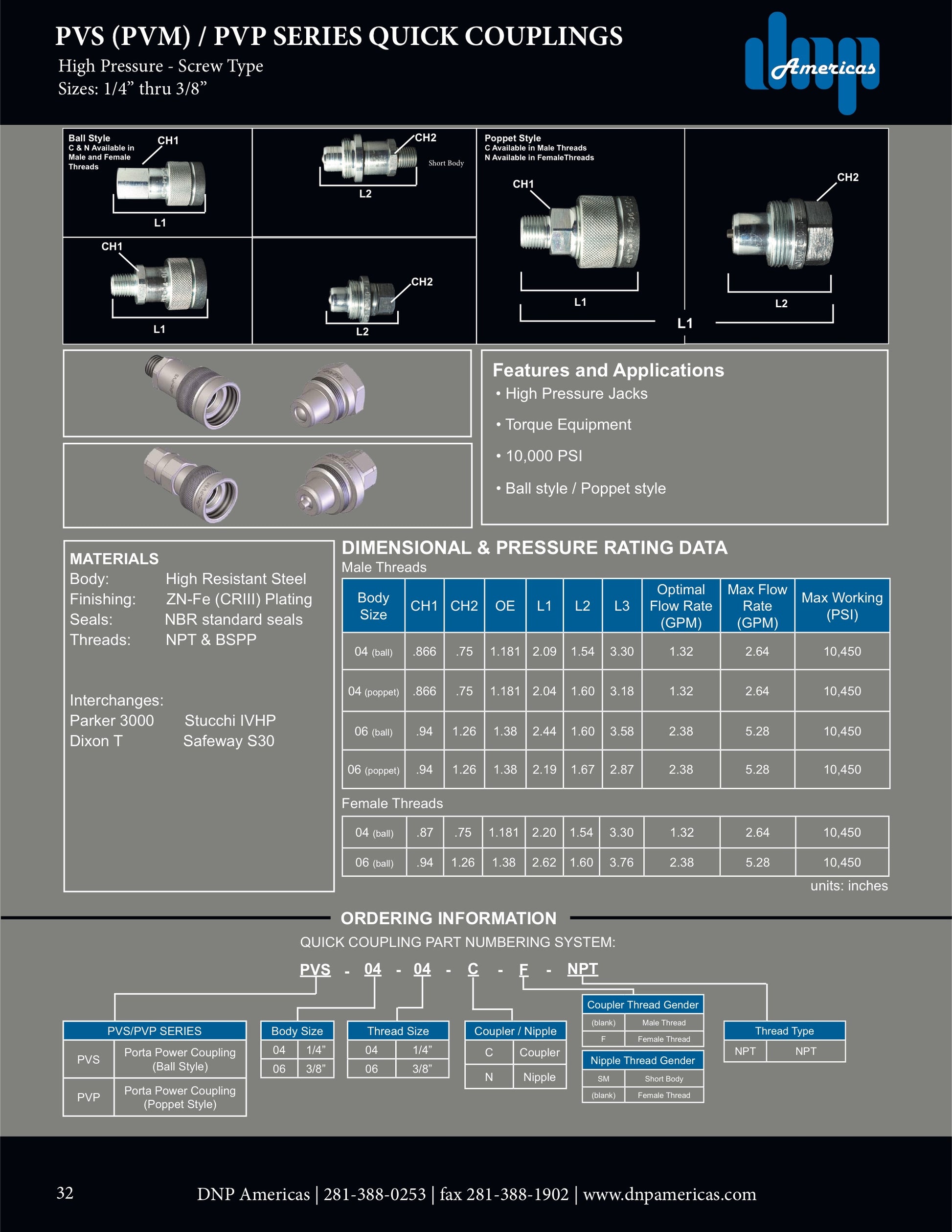

Ball

Standard: ISO 14540

Occlusion: ball

Locking: screw

Material: steel

Finishing: Zn-Fe (Cr III)

Threads: BSP-NPT

Standard seals: NBR

Working temperature: -13°F+212°F

Optional seals: FKM, EPDM or more

Working pressure: 10,440 PSI

Connection under residual pressure: allowed (both male

                                                       or female side)

Max residual pressure: 1,450 PSI

Sizes Offered: 1/4”-3/8”

Special Notes: 1/4”-3/8” female coupler also available with female threads , Male Nipple with Male thread available,
